制造范围
- 变化： 软退火
- 单线直径：范围从 Ø 0.05 mm 到 Ø 0.16 mm（根据要求提供∅ 0.20 mm）
- 标称横截面：范围为 0.09 mm² 至 240 mm²
标称横截面为 1.5 mm² 至 70 mm²，可根据要求提供单线∅ 0.05 mm - 根据要求提供可变参数
- 可根据要求提供带直边的扁平铜导体
材料
| 裸 | 镀锡 | 镀银 | 镀镍 | 浅 金色 | |
| 铜 ETP | ♦ | ♦ | ♦ | ♦ | |
| 铜 OF | ♦ | ♦ | o | ||
| 不锈钢 | o | ||||
| 铝 | o |
♦ 标准 o 根据要求
我们的织物带的柔韧性取决于其设计。单根线材的数量越大，直径越小，成品就越灵活。
因此，所有扁平铜导体都可以精确地适应所需的应用。
应用
- 接地带
- 母线
- 连接
Applications
- Earthing straps
- Busbars
- Connectors
Manufacturing range
- Variations: soft annealed
- Single wire diameter: ranging from Ø 0.05 mm to Ø 0.16 mm (∅ 0.20 mm upon request)
- Nominal cross section: ranging from 0.09 mm² to 240 mm²
Nominal cross-section from 1.5 mm² to 70 mm² with single wire ∅ 0.05 mm upon request - Variable parameters upon request

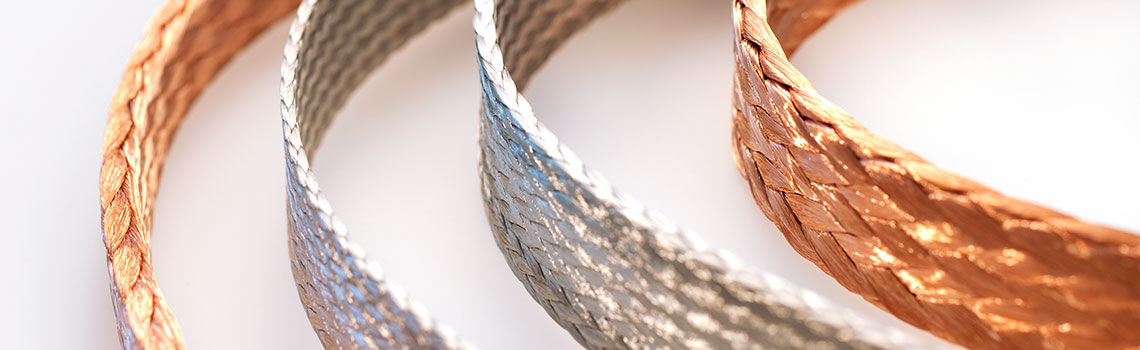

- Flat copper conductors with straight edges upon request
Materials
| bare | tin- plated | silver- plated | nickel- plated | light gold | |
| Cu ETP | ♦ | ♦ | ♦ | ♦ | |
| Cu OF | ♦ | ♦ | o | ||
| Stainless steel | o | ||||
| Aluminium/ | o |
♦ Standard o Upon request
The flexibility of our fabric tapes is determined by their design. The higher the number and the smaller the diameter of the individual wires, the more flexible the finished product will be.
Thus, it is possible for all flat copper conductors to be precisely geared towards the desired application.
